TOUCHSCREEN SERIES

Touchscreen series.
Steam sterilizers.

A touchscreen interface. Three chamber capacities.

Choose your capacity

Inquire About This Model Explore the details

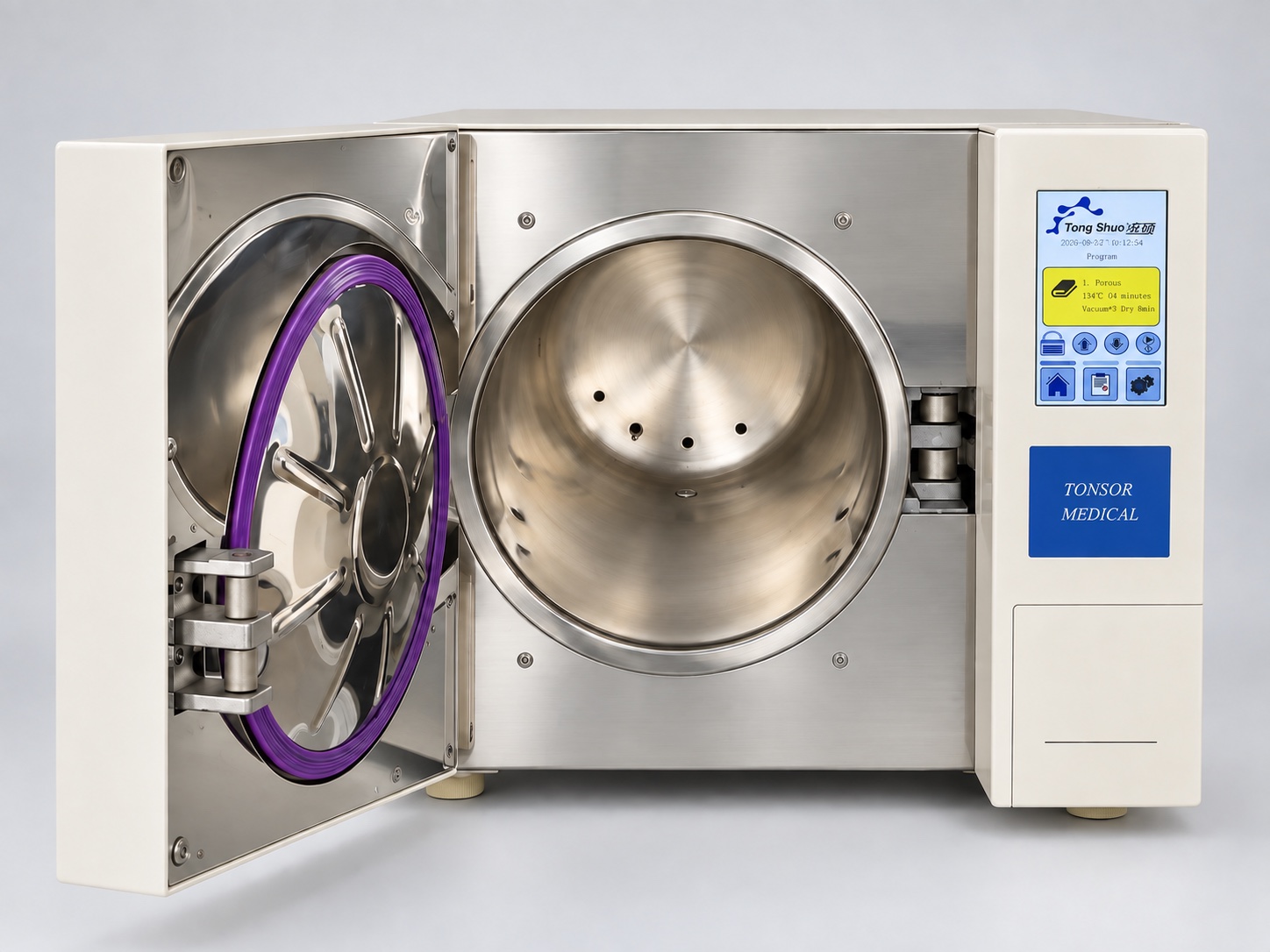

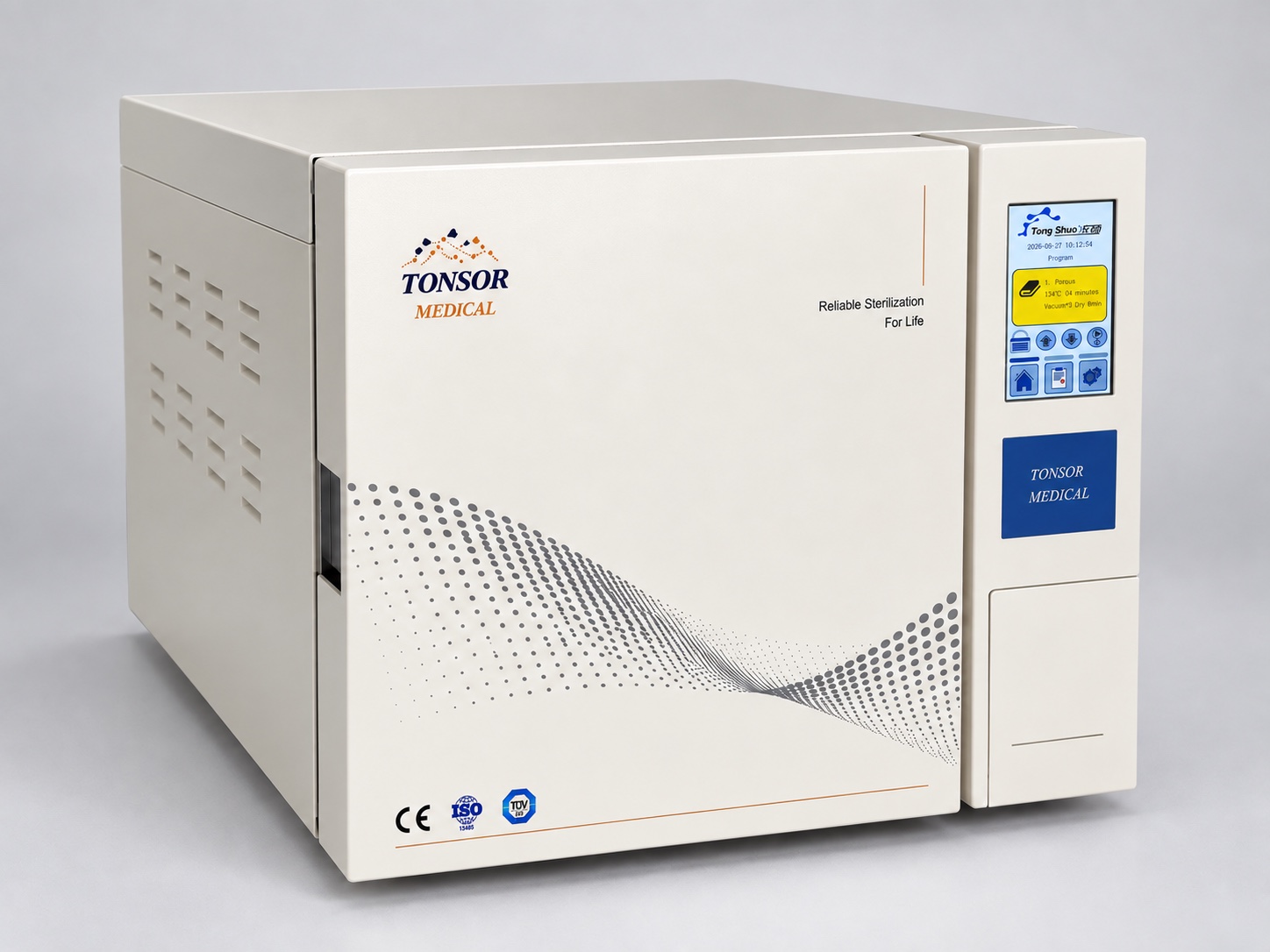

Touchscreen Series 23 L steam sterilizer — Touchscreen Series · 23 L unit shown

Touchscreen Series · 23 L unit shown

THE INTERFACE

An operation starts here.

Program information and on-screen controls share one display. Take a closer look at the interface before discussing your configuration.

Programs and functions depend on the selected model and configuration.

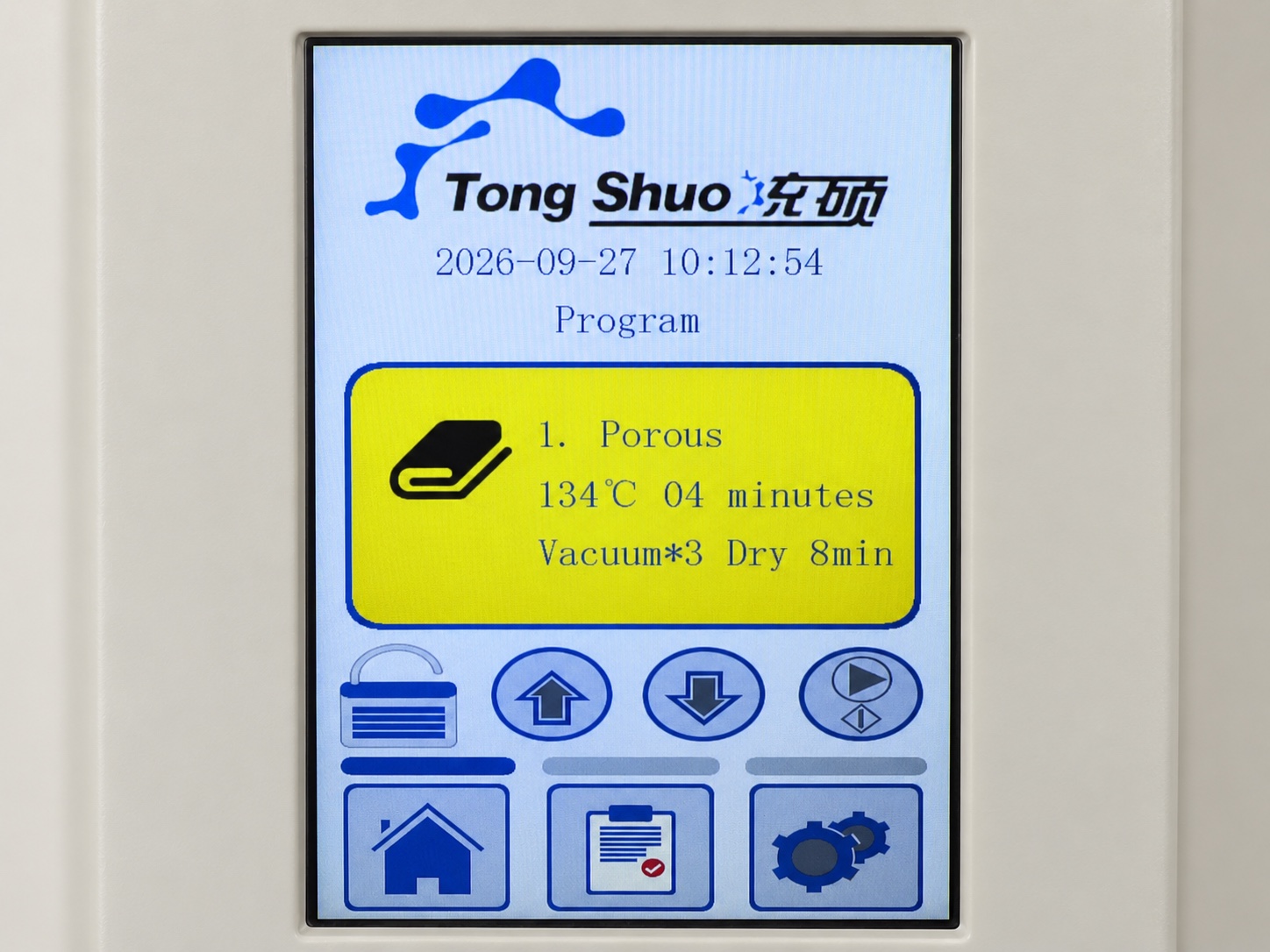

Touchscreen display detail

Tell us what you need to sterilize.

Share instrument dimensions, loading requirements and your market. We will help confirm a suitable model and provide the relevant specifications.

Inquire About This Model Request model specifications

Selected capacity ·

Sterilization program list

Holding time is the sterilization stage, not the total cycle time. Refer to your model’s manual for program and load selection.

Sterilization programs

Sterilization programs
Program	Temperature (°C)	Pressure (kPa)	Holding time (min)	Vacuum cycles	Drying	Total time (min)	Load details
Porous134	134	210	4	3	Yes	30–45	Load details Load figures (kg)Items listed in the manual Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.
Hollow134	134	210	4	3	Yes	30–40	Load details Load figures (kg)Items listed in the manual Unwrapped hollow instruments; single-layer wrapped hollow instruments.
Package134	134	210	4	3	Yes	35–45	Load details Load figures (kg)Items listed in the manual Single-layer wrapped solid instruments.
Solid134	134	210	4	3	Yes	35–40	Load details Load figures (kg)Items listed in the manual Unwrapped solid instruments.
Porous121	121	110	20	3	Yes	45–58	Load details Load figures (kg)Items listed in the manual Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.
Hollow121	121	110	20	3	Yes	45–55	Load details Load figures (kg)Items listed in the manual Unwrapped hollow instruments; single-layer wrapped hollow instruments.
Quick134	134	210	4	1	No	16–20	Load details Load figures (kg)Items listed in the manual Unwrapped solid instruments.
Prion 134	134	210	18	3	Yes	50–58	Load details Load figures (kg)Items listed in the manual Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.

Porous134134 °C · 30–45 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 3
Drying: Yes
Total time (min): 30–45

Load figures (kg)Items listed in the manual

Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.

Hollow134134 °C · 30–40 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 3
Drying: Yes
Total time (min): 30–40

Load figures (kg)Items listed in the manual

Unwrapped hollow instruments; single-layer wrapped hollow instruments.

Package134134 °C · 35–45 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 3
Drying: Yes
Total time (min): 35–45

Load figures (kg)Items listed in the manual

Single-layer wrapped solid instruments.

Solid134134 °C · 35–40 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 3
Drying: Yes
Total time (min): 35–40

Load figures (kg)Items listed in the manual

Unwrapped solid instruments.

Porous121121 °C · 45–58 min

Temperature (°C): 121
Pressure (kPa): 110
Holding time (min): 20
Vacuum cycles: 3
Drying: Yes
Total time (min): 45–58

Load figures (kg)Items listed in the manual

Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.

Hollow121121 °C · 45–55 min

Temperature (°C): 121
Pressure (kPa): 110
Holding time (min): 20
Vacuum cycles: 3
Drying: Yes
Total time (min): 45–55

Load figures (kg)Items listed in the manual

Unwrapped hollow instruments; single-layer wrapped hollow instruments.

Quick134134 °C · 16–20 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 1
Drying: No
Total time (min): 16–20

Load figures (kg)Items listed in the manual

Unwrapped solid instruments.

Prion 134134 °C · 50–58 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 18
Vacuum cycles: 3
Drying: Yes
Total time (min): 50–58

Load figures (kg)Items listed in the manual

Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.

Test programs

Test programs
Program	Temperature (°C)	Pressure (kPa)	Holding time (min)	Vacuum cycles	Drying	Total time (min)	Load details
BD test	134	210	3.5	3	Yes	30	—
Vacuum test	—	-80	—	—	—	18	—

BD test134 °C · 30 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 3.5
Vacuum cycles: 3
Drying: Yes
Total time (min): 30

—

Vacuum test— °C · 18 min

Temperature (°C): —
Pressure (kPa): -80
Holding time (min): —
Vacuum cycles: —
Drying: —
Total time (min): 18

—

Load figures retain the manual’s slash notation; its two values are not further defined here. A dash means no value is supplied.
