Pointed Door Series.

Shared front design across 17 L, 23 L and 29 L; chamber depth and overall length vary.

Pointed Door 29 L unit — closed view

Series photographs: 29 L unit shown. Other capacities have different chamber and body depths.

Choose capacity

Selected capacity

29 L

Chamber diameter: 250 mm
Chamber depth: 590 mm
Overall L × W × H: 800 × 480 × 420 mm

Chamber proportions

Ø250 mm

590 mm depth

Inquire About This Model View Detailed Specifications

Side-section schematic · Depth scale shared across capacities. Not a product photograph.

PRODUCT INFORMATION

Compare all three capacities

Pointed Door Series · Dimensions in millimetres
Capacity	Chamber Ø × depth	Overall L × W × H
17 L	250 × 350	560 × 480 × 420
23 L	250 × 460	670 × 480 × 420
29 L	250 × 590	800 × 480 × 420

The chamber diameter stays at 250 mm. Chamber depth and overall machine length change with capacity.

OPERATION & CONFIGURATION

A closer look at operation.

The manual describes the functions below. Contact us to confirm their availability for your selected model and configuration.

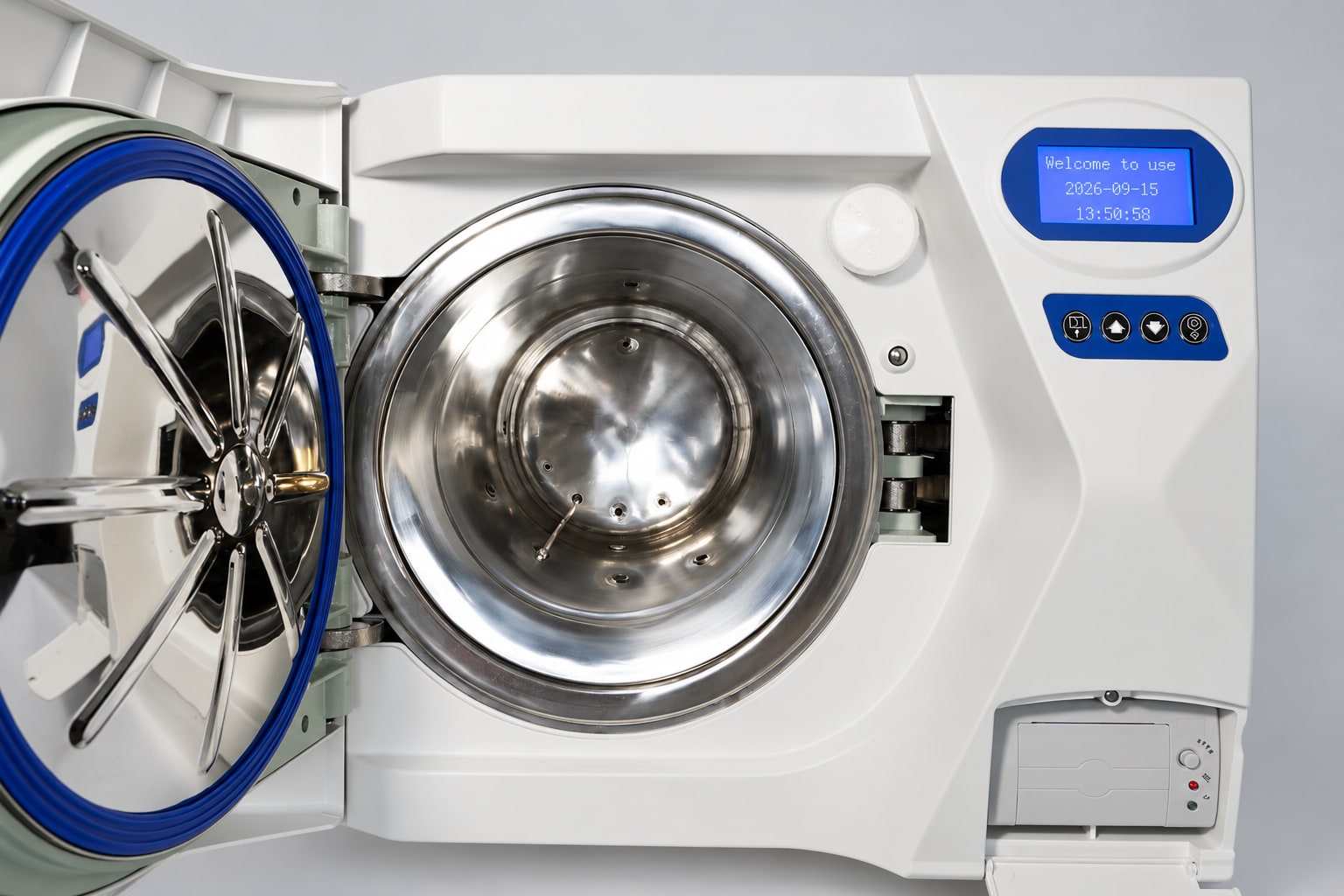

Push-Button Door Opening

Press the button, and the door opens automatically.

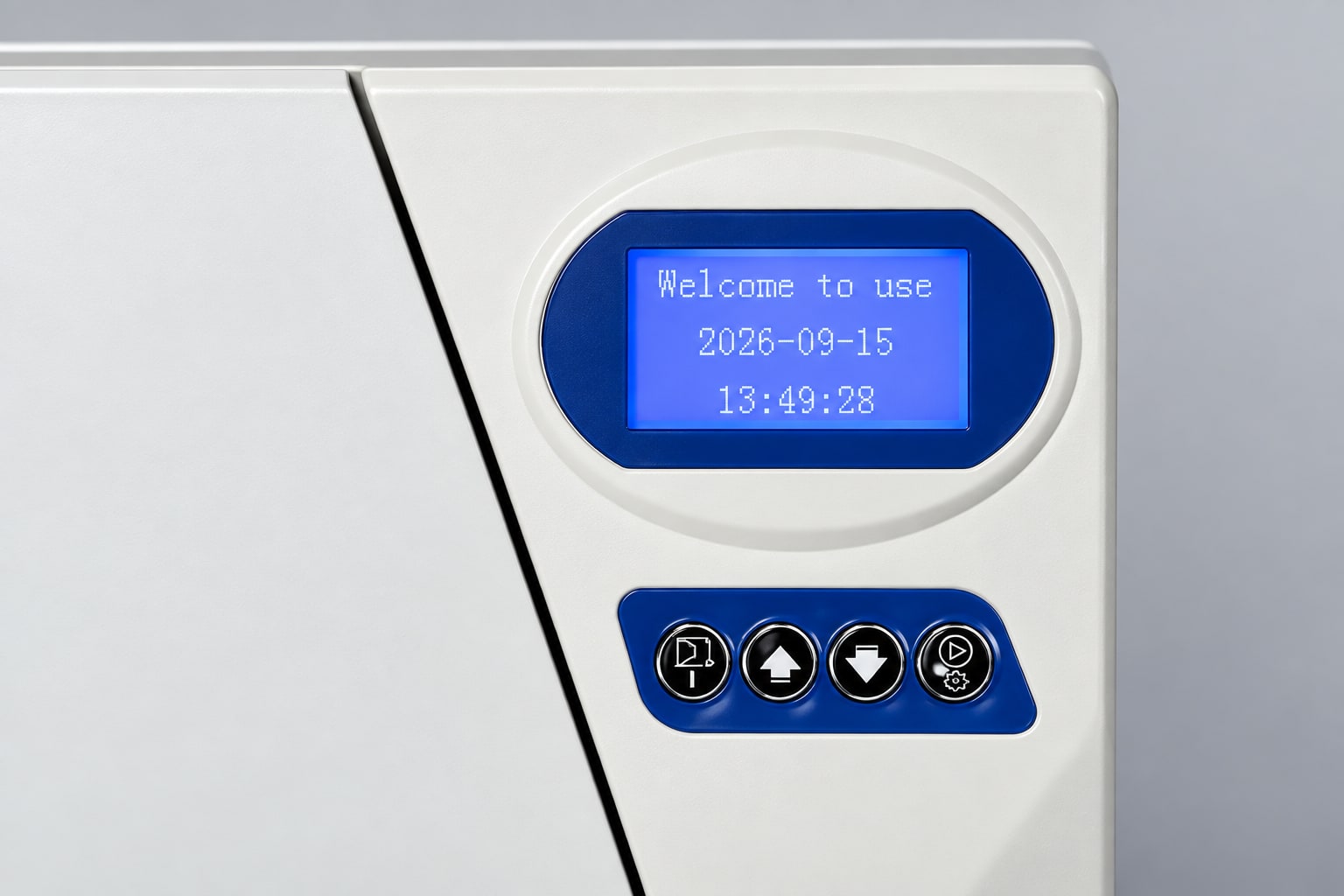

LCD cycle information

Follow the cycle stage, temperature, pressure and time on the display.

Program selection

Select a program using the keypad. Refer to the model-specific manual for the appropriate program and load.

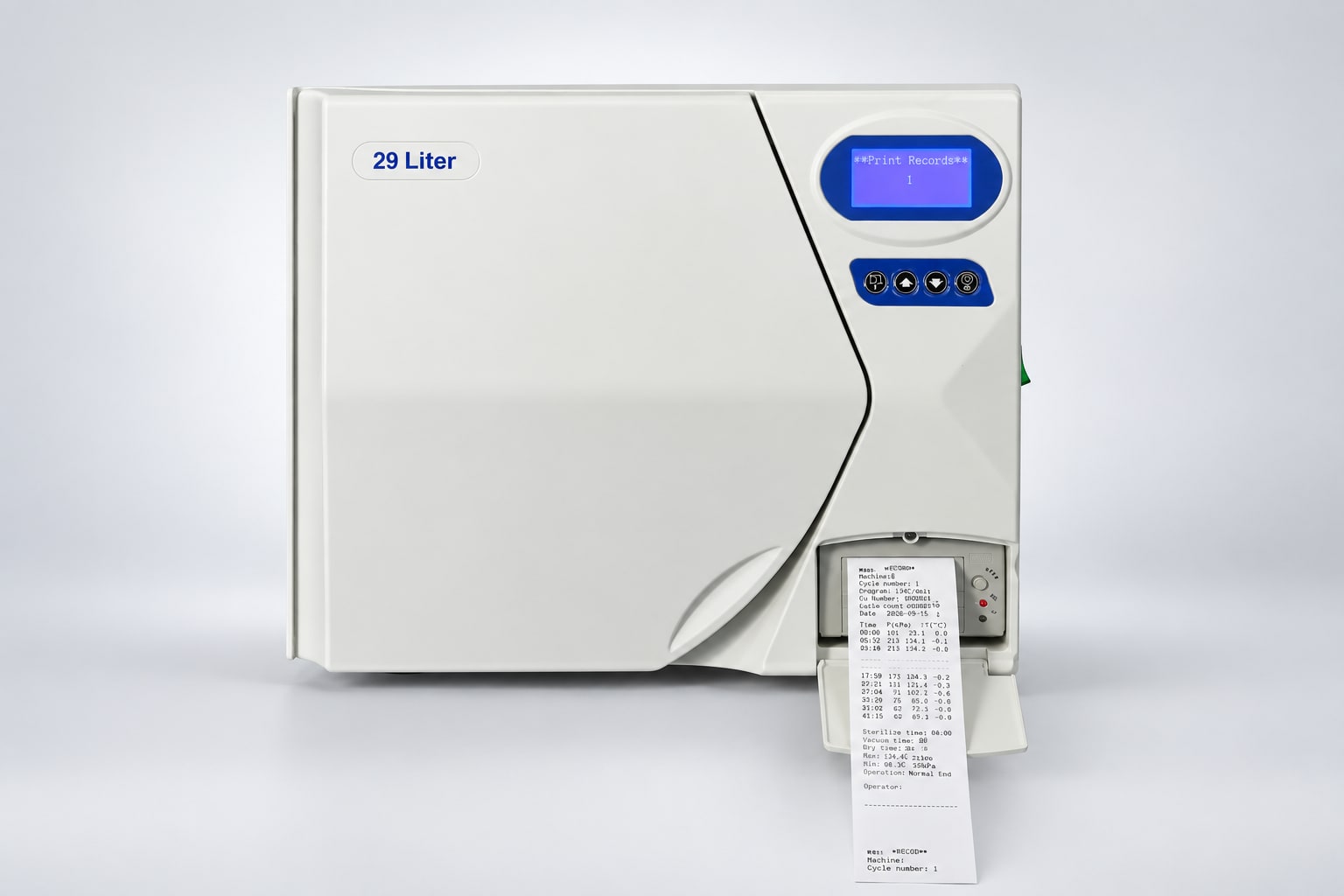

Printed cycle records

Models equipped with a printer can print cycle-stage information, including time, temperature and pressure.

Confirm This Configuration

PLAN YOUR PURCHASE

The details that matter.

Check the installation requirements and supplied equipment before ordering.

Before installation

Before installation, check the power supply, work surface, ventilation clearances and water connections required for your selected model. Contact us for the relevant installation instructions.

Request Installation Information

Included accessories

Contact us to confirm the trays, tray rack, tray handle and other accessories supplied with your selected model.

Request the Packing List

Documents for your model

Request the user manual and technical information for your model. Include the series, capacity and model so we can identify the appropriate version.

Request Model Documents

Selected capacity ·

Sterilization program list

Holding time is the sterilization stage, not the total cycle time. Refer to your model’s manual for program and load selection.

Sterilization programs

Sterilization programs
Program	Temperature (°C)	Pressure (kPa)	Holding time (min)	Vacuum cycles	Drying	Total time (min)	Load details
Porous134	134	210	4	3	Yes	30–45	Load details Load figures (kg)Items listed in the manual Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.
Hollow134	134	210	4	3	Yes	30–40	Load details Load figures (kg)Items listed in the manual Unwrapped hollow instruments; single-layer wrapped hollow instruments.
Package134	134	210	4	3	Yes	35–45	Load details Load figures (kg)Items listed in the manual Single-layer wrapped solid instruments.
Solid134	134	210	4	3	Yes	35–40	Load details Load figures (kg)Items listed in the manual Unwrapped solid instruments.
Porous121	121	110	20	3	Yes	45–58	Load details Load figures (kg)Items listed in the manual Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.
Hollow121	121	110	20	3	Yes	45–55	Load details Load figures (kg)Items listed in the manual Unwrapped hollow instruments; single-layer wrapped hollow instruments.
Quick134	134	210	4	1	No	16–20	Load details Load figures (kg)Items listed in the manual Unwrapped solid instruments.
Prion 134	134	210	18	3	Yes	50–58	Load details Load figures (kg)Items listed in the manual Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.

Porous134134 °C · 30–45 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 3
Drying: Yes
Total time (min): 30–45

Load figures (kg)Items listed in the manual

Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.

Hollow134134 °C · 30–40 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 3
Drying: Yes
Total time (min): 30–40

Load figures (kg)Items listed in the manual

Unwrapped hollow instruments; single-layer wrapped hollow instruments.

Package134134 °C · 35–45 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 3
Drying: Yes
Total time (min): 35–45

Load figures (kg)Items listed in the manual

Single-layer wrapped solid instruments.

Solid134134 °C · 35–40 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 3
Drying: Yes
Total time (min): 35–40

Load figures (kg)Items listed in the manual

Unwrapped solid instruments.

Porous121121 °C · 45–58 min

Temperature (°C): 121
Pressure (kPa): 110
Holding time (min): 20
Vacuum cycles: 3
Drying: Yes
Total time (min): 45–58

Load figures (kg)Items listed in the manual

Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.

Hollow121121 °C · 45–55 min

Temperature (°C): 121
Pressure (kPa): 110
Holding time (min): 20
Vacuum cycles: 3
Drying: Yes
Total time (min): 45–55

Load figures (kg)Items listed in the manual

Unwrapped hollow instruments; single-layer wrapped hollow instruments.

Quick134134 °C · 16–20 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 4
Vacuum cycles: 1
Drying: No
Total time (min): 16–20

Load figures (kg)Items listed in the manual

Unwrapped solid instruments.

Prion 134134 °C · 50–58 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 18
Vacuum cycles: 3
Drying: Yes
Total time (min): 50–58

Load figures (kg)Items listed in the manual

Unwrapped fabric; single/double-layer wrapped fabric; single/double-layer wrapped hollow instruments.

Test programs

Test programs
Program	Temperature (°C)	Pressure (kPa)	Holding time (min)	Vacuum cycles	Drying	Total time (min)	Load details
BD test	134	210	3.5	3	Yes	30	—
Vacuum test	—	-80	—	—	—	18	—

BD test134 °C · 30 min

Temperature (°C): 134
Pressure (kPa): 210
Holding time (min): 3.5
Vacuum cycles: 3
Drying: Yes
Total time (min): 30

—

Vacuum test— °C · 18 min

Temperature (°C): —
Pressure (kPa): -80
Holding time (min): —
Vacuum cycles: —
Drying: —
Total time (min): 18

—

Load figures retain the manual’s slash notation; its two values are not further defined here. A dash means no value is supplied.
