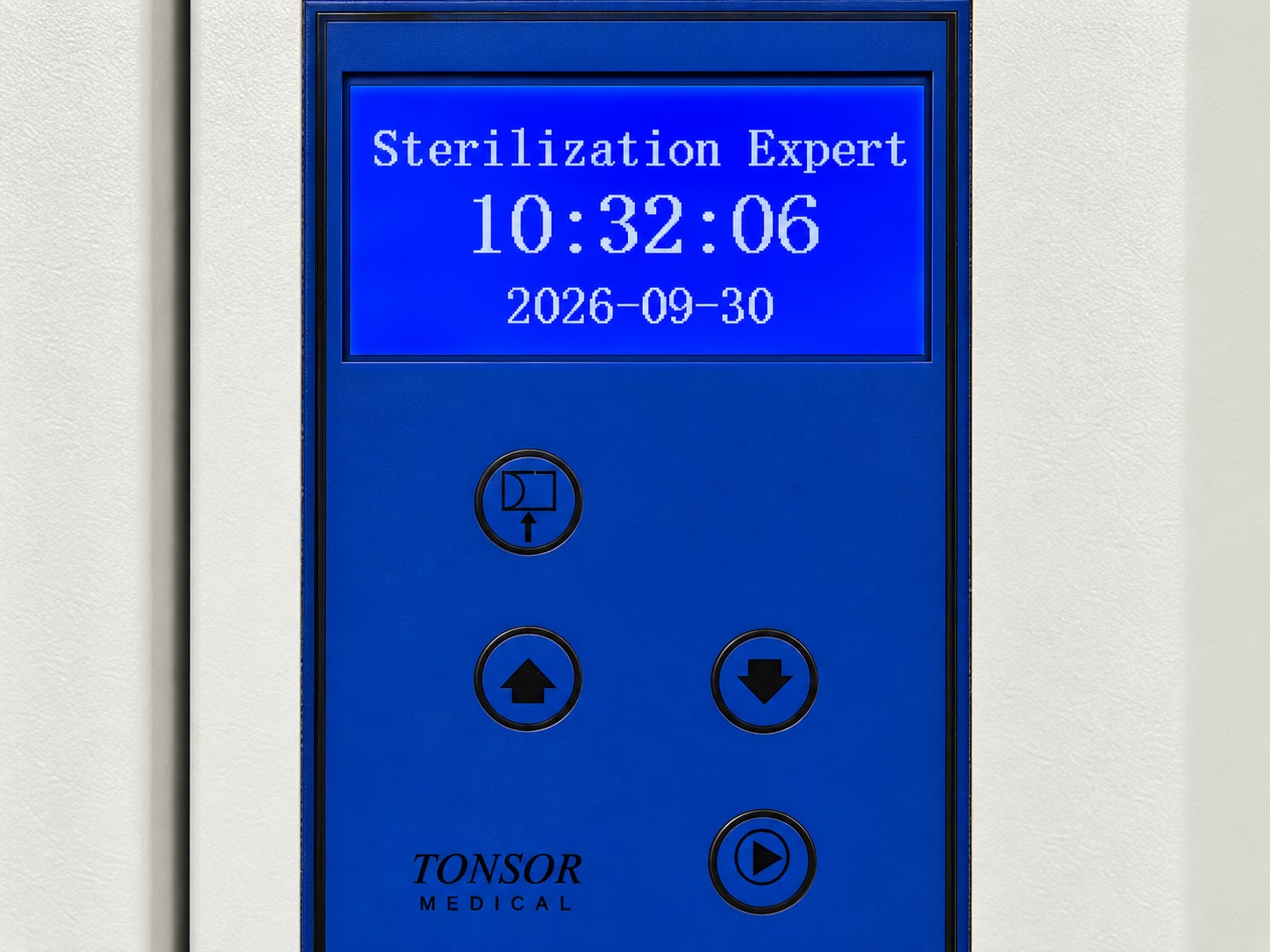

Enlarge photoDisplay & keypad
A front-mounted display with separate physical controls. View the panel layout in the supplied photograph.
45 L SERIES
45 L steam sterilizer.
A dedicated design. A 45 L chamber.
Chamber diameter × depthØ316 × 620 mm
Sterilization temperatures121 / 134 °C
Enlarge photo45 L specifications
Dimensions, power and installation planning.

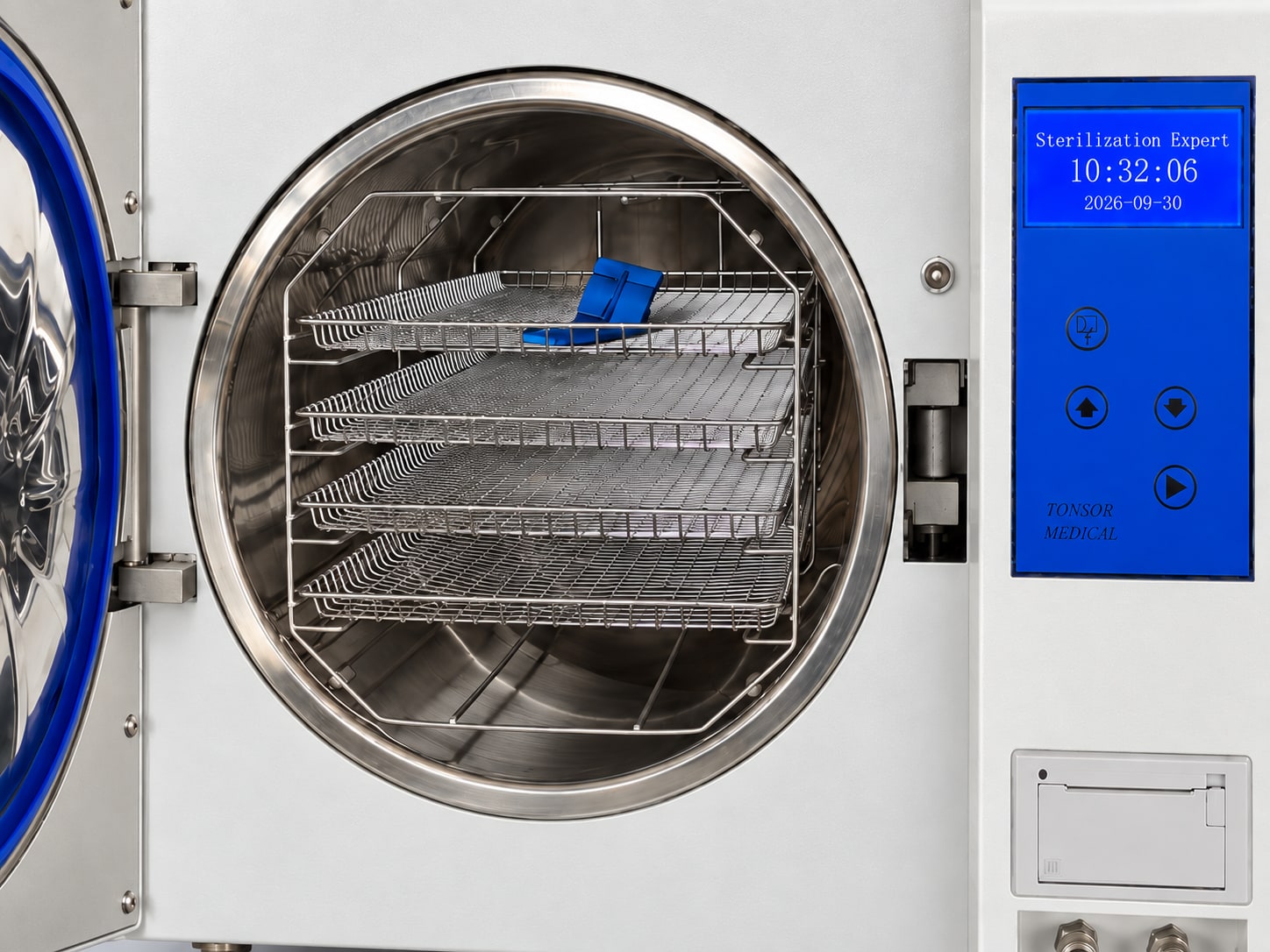

Enlarge photoChamber access
A 316 mm diameter chamber with 620 mm depth. Review instrument dimensions and loading requirements when planning your configuration.
Four stainless steel trays are included. The photographed tray arrangement may differ from the supplied configuration.
- Model classification
- Class B
- Chamber capacity
- 45 L
- Chamber diameter × depth
- Ø316 × 620 mm
- Overall dimensions · L × W × H
- 830 × 650 × 550 mm
- Net / gross weight
- 110 / 130 kg
- Packing dimensions
- 970 × 730 × 700 mm
- Electrical supply
- AC 220 V ±10% · 50 Hz ±10%
- Heater rating
- 3500 VA
- Sterilization temperatures
- 121 / 134 °C
- Sterilization time
- Depends on the selected program
- Construction material
- SUS 304 stainless steel
- Instrument trays
- 4 stainless steel trays
Operation & Details
The front panel, in detail.
Enlarge photo

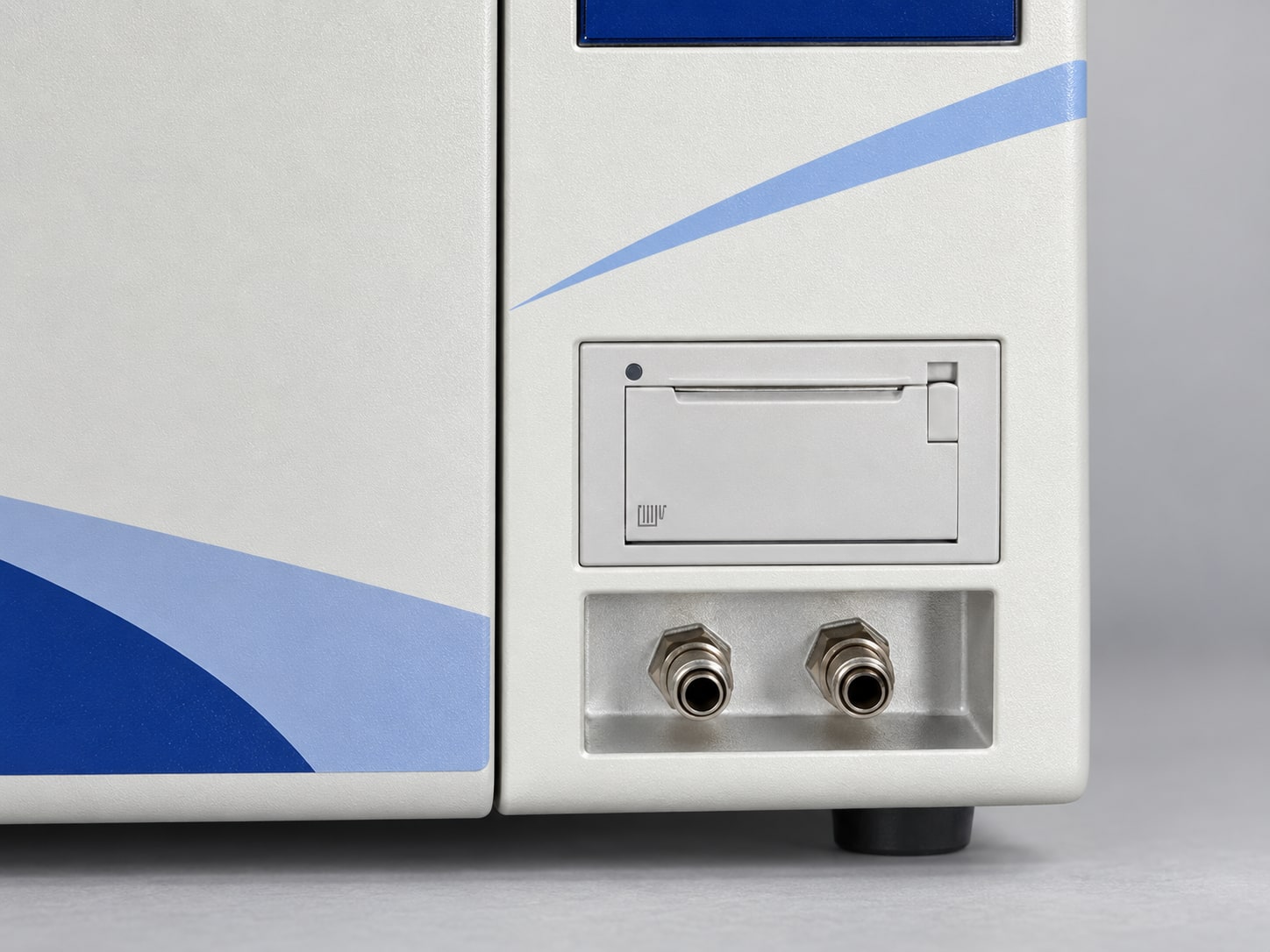

Enlarge photoPrinter & front connections
The pictured unit shows a printer above two front connections. Ask us about printer configuration and connection requirements for your order.
Plan your 45 L configuration.
Share your instrument dimensions, installation space and destination market. We will help confirm programs, accessories and the documents for your order.
